Energy Saving Full Color Outdoor Fixed P10 LED Display for Advertising
Energy Saving Full Color Outdoor Fixed P10 LED Displayfor Advertising Specifications: Features: 1.Durable fresh color an
Basic Info
| Model NO. | P10 Outdoor Fixed |
| Pixel Density | 10000 dot / m² |
| Scanning Mode | 1/2 Scan |
| Display Type | LED Video Display |
| Application | Advertising |
| Certification | CE, RoHS, ETL |
| Cabinet Materiel | Standard Steel |
| Drive IC | Mbi5124 |
| LED Lamp | SMD3535 |
| Brightness | >=6500nits |
| Refresh Rate | >1920Hz |
| Viewing Angle | 120°h/60°V |
| Control Mode | Synchronization Control/Asychroniztion Contronl |
| Viewing Distance | >=10m |
| Running Files | Text, Animation, Picture, Video and etc. |
| Lifetime | 100,000 Hours |
| Transport Package | Wooden Case |
| Specification | 960*960mm |
| Trademark | KEASYLED |
| Origin | China |
| HS Code | 8528591090 |
| Production Capacity | 10000000 M2 / Year |
Product Description
Energy Saving Full Color Outdoor Fixed P10 LED Displayfor AdvertisingSpecifications:
| Item | P10 Advertising LED Display | |
| Pixel pitch: | 10mm | |
| Driving method : | Static current | |
| LED type : | SMD3535 | |
| Brightness: | >6500CD/m2 | |
| Pixel density | 10000dots/m2 | |
| Viewing angle: | 120°H and 60°V | |
| Module size(W*H) | 320*160mm | |
| Cabinet size(W*H) | 960*960mm | |
| Cabinet weight: | 48kg | |
| Cabinet material: | Standard steel | |
| Avarage power consumption: | 350 W/m2 | |
| Max consumption : | 980 W/m 2 | |
| Refresh rate: | >1920Hz | |
| Color Depth: | 16bit | |
| Voltage : | 200-240V | |
| IP rrating (Front/Rear): | IP65 | |
| Operating temperature : | -20-60 degree | |
| Storage temperature: | -40-70 degree | |
| Operation humidity: | 10-90% | |
| Storage humidity: | 10-90% | |
| Life span (hrs) | ≥100,000Hours | |
| Control system | Linsn/Nova | |
| Compliant standard: | CE,CCC,FCC,RoHS | |
Features:
1.Durable fresh color and high brightness by adopting high quality LEDs. 2.Energy-saving 29% by using high efficiency IC driver, high brightness LEDs and improved PCB. 3.Great uniformity , contract ratio and screen flatness. 4.Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.5.IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.

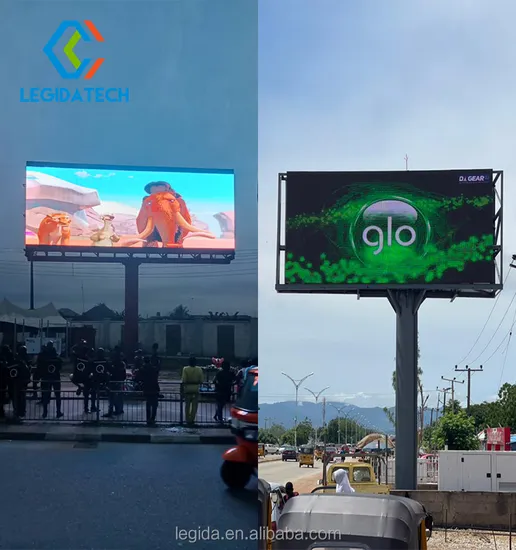

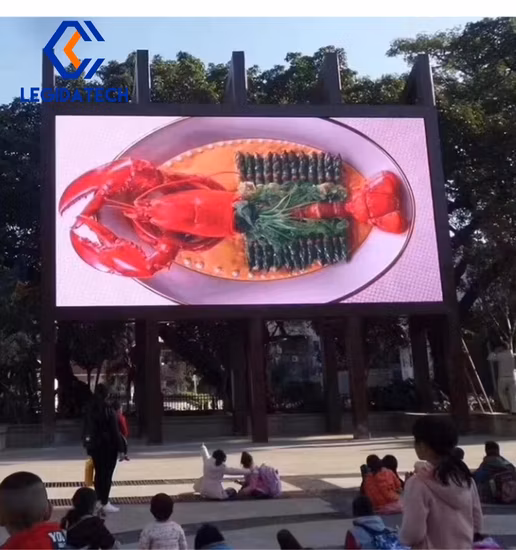

Project pictures:
Applications:
1. Application: Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools,
monitoring, restaurants, entertainment, enterprises etc
2. Market: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our services:
1.Your inquiry about our products or the price will be replied within 24 hours! 2.We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service. 3.We will delivery goods as you demand, you can choose the cheaper and more convenient way!
Trade terms:
1.Packing: Anti-shaking wooden case/Air flight case/carton 2.Shipping port: Shenzhen, China 3.Shipping freights are quoted according to your requests 4.Delivery time:30 working days 5.Two years warranty, lifelong maintaining. In the Maintenance period, free of all maintenance charges.After Maintenance period, only charge the material cost fees.
