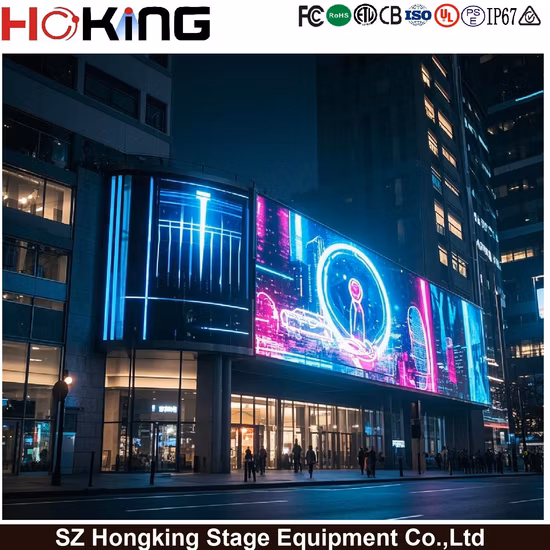

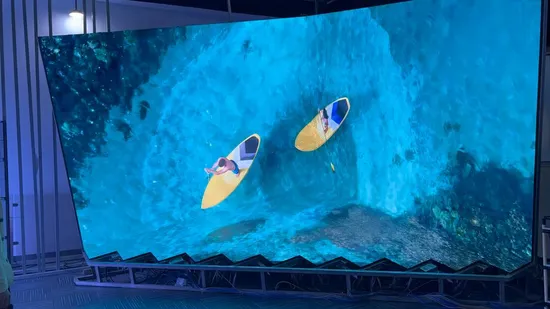

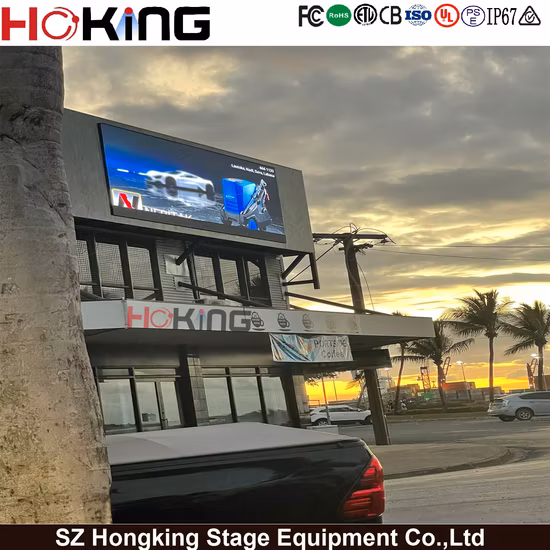

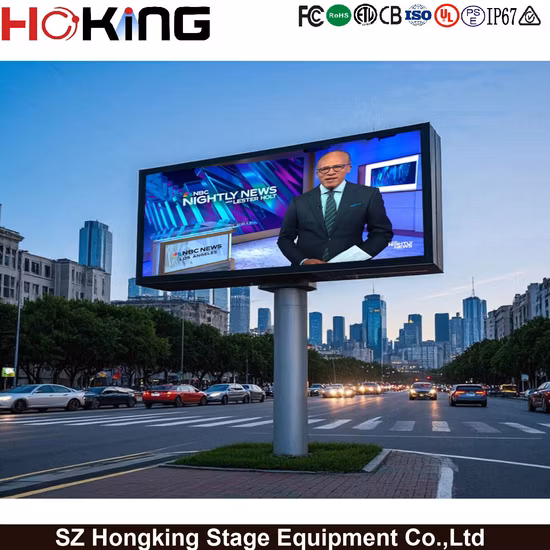

P10 Front Service Full Color Outdoor Advertising LED Sign Display
Basic Info
Model NO. | P10 |
Tube Chip Color | Full Color |
IP Rating | IP65 |
Pixel Pitch | 10mm |
Pixel Configuration | 1R, 1G, 1B |
Display Function | Video Display |
Average Power Consumption | 350W / m² |
Pixel Density | 10000 dot / m² |
Scanning Mode | 1/4 Scan |
Display Type | LED Video Display |
Application | Advertising |
Certification | CE, RoHS, ISO |
Customized Size | LED Display |
Transport Package | Wooden Case Packing: 1330*550*1010mm |
Specification | 160*160mm |
Trademark | QC |
Origin | China, Guangzhou |
HS Code | 8528591090 |
Production Capacity | 3000 Square Meter/Square Meters / Month |
Product Description
P10 Front Service Full Color Outdoor Advertising LED Sign DisplayTechnical Parameters
Pitch Size | 10m |
Module Size | 320*160mm |
Module Pixel(dots) | 32dots*16dots |
Pixel Configuration | 1 Red, 1 Green, 1 Blue SMD 3-in-1 |
LED chip | Sanan |
Color scale | 65536degree/16777216colors |
Pixel density | 10000pixels/square meter |
View angle(H/V) | ≥140/140degree |
Brightness | ≥5000cd/square meter |
Brightness adjustment | 64 level automatic or manual |
View distance | 3--200m |
Power consumption | 100-1200W/square meter |
Net weight | 41kg/square meter |
Operating temperature | -25°C~+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
Out of control dot | ≤1/10,000 |
Whole Display Flatness | ≤1mm Juncture |
Exchange frame speed | >150frames per second |
Refresh frame frequency | 1920Hz/3840Hz |
Control distance | 120m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 50/60Hz |
Operating system | Windows series |
Drive mode | constant current driving, 1/4 scan |
Display mode | VGA640X480-VGA1600X1024 |
Protection Level | IP65 |
Maintenance way | Rear access |
Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Other products:Indoor fixed LED screen: P1.53,P1.875,P2,P2.5, P3, P4, P5, P6, P8, P10Indoor rental LED screen: P2.5,P2.976,P3, P3.91, P4, P4.8, P4.81, P5, P6Outdoor fixed LED screen: P2.5, P3, P4, P5, P6, P6.67,P8, P10Outdoor rental LED screen:P3, P3.91, P4, P4.8, P4.81, P5, P6, P8, P10Small pitch LED screen: P1.25, P1.53Front service maintenance LED screen: P6.67, P8, P10Stadium perimeter LED screen: P4, P5, P6, P8, P10LED poster player: P1.875, P2.5, P3, P4, P5, P6, P8, P10
Company Information
Packing & Shipping
Payment terms: By T/T in advance, 30% deposit and the balance 70% before shipment.
Delivery time:15-20days
Warranty time:2 years,offer the free spare parts(module & power supply) in advance.After guarantee term,still supply spare parts with charging only materials cost.
Packing:Standard wooden case packing free,flight case packing
