P2.9 Indoor Fixed 500X1000mm Advertising LED Display
Basic Info
| Model NO. | P2.9 |
| Tube Chip Color | Full Color |
| Display Function | Video Display, Image & Text Display, Text Display, Market Display |
| Pixel Pitch | 2.9mm |
| Pixel Configuration | 1R,1G,1B |
| Pixel Density | 112896 Pixels/M2 |
| Scanning Mode | 1/16 Scan |
| System Operating Platform | Windows |
| Display Type | LED Video Display |
| Application | Stage Performance, Advertising, Shopping Guide |
| IP Rating | IP31 |
| Certification | CE, RoHS, CCC, ETL |
| Cabinet Material | Aluminum |
| Cabinet Weight | 14kg/PCS |
| Viewing Distance | 3 Meters |
| Brightness | 1000nits |
| Refresh Rate | >1920Hz |
| Contrast Rate | 3000:1 |
| Voltage | AC110-240V |
| Driver IC | Constent Current |
| LED Lamps | Epistar |
| PSU | MW |
| Service Solution | Front Service |
| System | Nova |
| Software OS | Windows |
| Transport Package | Plywood Cases |
| Specification | 500x1000mm |
| Trademark | LEDventure |
| Origin | China |
| HS Code | 8528591090 |
| Production Capacity | 2000sqm/Month |
Product Description
P2.9 Indoor Fixed 500x1000mm Advertising LED Display
We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display, stadium sport led display screen, led sign, led display board and led billboard.
Part 1: Product Mainly Features
Indoor Series P2.9 LED Display Screen has two models, P2.9 fixed series and rental series led display screens.
It is a special series with ultra light weight die casting aluminum cabinet, and it is very popular for indoor advertising media, such as in airport, shopping mall, shows etc. HD resolution with high contract rate, also refresh rate is good level to ensure image quality.
| Pixel Pitch | 2.6mm, 2.9mm, 3.9mm, 4.8mm |
| Brightness | 1000nits |
| Cabinet size | 500x1000mm |
| Max. Power consumption | 700W/m2 |
| LED Brand | Epistar |
| Driver IC | Constent current |
| PSU | MW |
| Refresh rate | >1920HZ |
Part 2: Product Detailed Images
Indoor led video wall detail images included hardware
Part 3: Material Quality Level
All of our product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Part 4: Technical Specification.
Item | Indoor Fixed Series High Quality P2.9 LED Display Screen |
Model Number | IF-P2.9 |
Pixel Pitch | 2.9mm |
Pixel Density(pixels/M2) | 112896 pixels |
Pixel Configuration | 1R1G1B |
LED Type | Epistar, SMD 3 In 1 |
Module size(mm) | 250x250mm |
Module Resolution(pixels) | 84*84 pixels |
Min.Viewing Distance(m) | 3 meters |
Brightness(nits) | 1000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(W/M2) | 350 |
Scan Mode | 1/32 Scan |
Protection Level | IP31 |
Cabinet Size(mm) | 500x1000mm |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC110-240V, 50HZ|60hz |
Refresh Rate | >1920hz |
Color | 65535 Levels |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | 16 bits |
Effective Communication Distance(without relay) | <100 meters |
Lifespan | ≥100,000 hours |
Environment Temperature | Storage: -40°C~+85°C , Operation: -20 °C~+45°C |
Blind Spot Rate | <0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |
Part 5: Installation Methods
Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
Part 6: Packing Information
Packing by plywood cases, packing well and easy to load
Part 7: Certificates.
All of our product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
Part 8: About LEDventure.

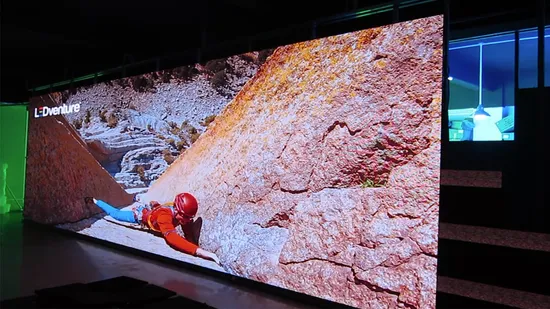

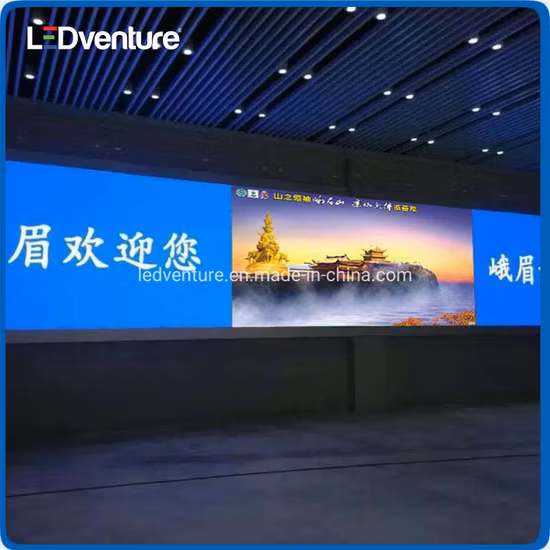

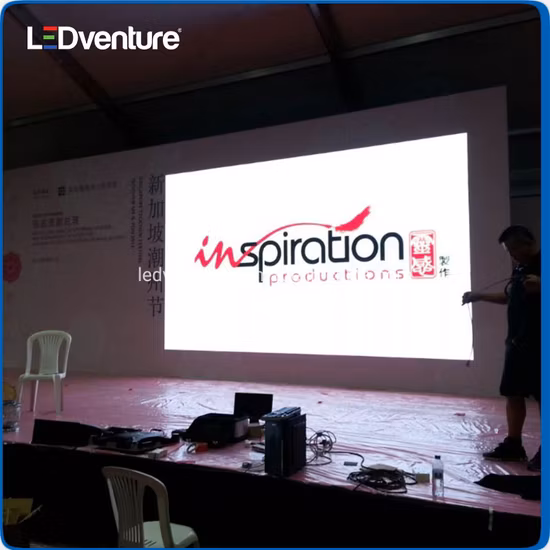

Part 9: LED Display Screen Installation Cases.
Most of our led display exported to Europe with high standards, also exported to USA, South America and Asia
