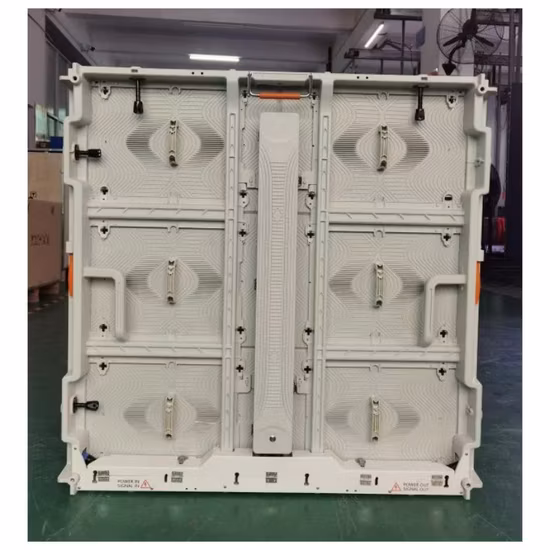

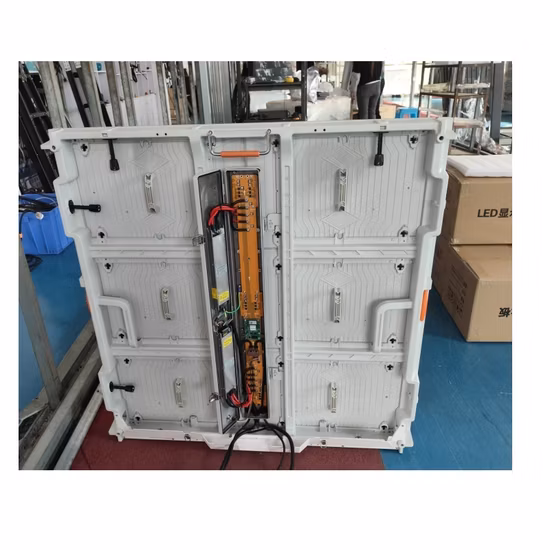

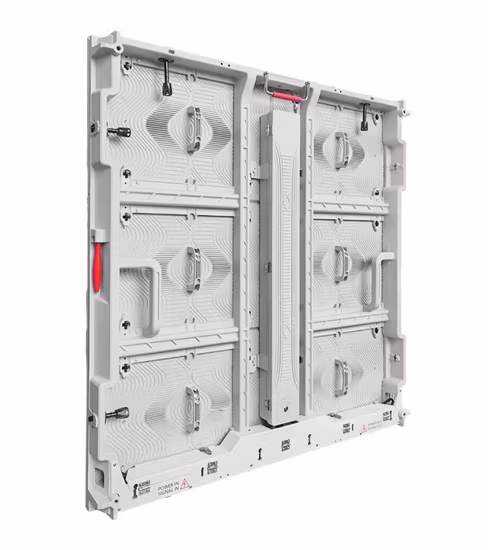

P4 Front Service LED Display
Basic Info
Pixel Configuration | 1R,1G,1B |
Pixel Density | 40,000 dots / m² |
Scanning Mode | 1/16 Scan |
System Operating Platform | WIN XP |
Display Type | LED Video Display |
Application | Advertising |
IP Rating | IP40 |
Certification | CE, RoHS |
Indoor | LED Module |
Transport Package | Wooden Box and Flight Case |
Trademark | MYLED |
Origin | Made in China |
HS Code | 8528591090 |
Production Capacity | 500000sqm Per Year |
Packaging & Delivery
Package size per unit product 115.00cm * 110.00cm * 125.00cm Gross weight per unit product 50.000kgProduct Description
Main Parameter | |
Category | Parameter |
Pixel Pitch | 4mm |
Optimum Viewing Distance | 4-10m |
Density of Pixel | 62500pixels/ |
Brightness | ≥1500nite |
Module Resolution | 40*40 |
LED Encapsulation | SMD2121 1R1G1B |
Driving Method | Real 1/8 Scan |
Optimum Viewing Angle | H: 120°V:100° |
Module Size | 160*160*12.6(mm) |
Module Power | 30w |
Module Weight | 260g |
Cabinet Size | 640*640*163(mm) |
Cabinet Resolution | 160*160 |
Cabinet Power | 600w |
Cabinet Weight | 30kg |
IP Rating | Front/Rear:IP30 |
Refresh Rate | 200-1000Hz( Different according to the different Driving IC) |
Luminance Consumption | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature25ºC. |
MTBF | >5000hours |
Defective Dot Rate | <0.0001 |
Life Span | >100000hours |
Working Voltage | 110-240 AC±10% 50-60Hz |
Working Temperature/Humidity | 0ºC- +45ºC/10-90%RH |
Storage Temperature/Humidity | -10ºC - +55ºC/10- 90%RH |
Input Signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Connector | CAT5 Cable(Length≤1430m),Optical link( Length≤20km,Optional) |
2. 3 in 1 quality black face LED
3. With the standard cabinet design, one cabinet can be available for different pixel requirements, which makes the installation process easier. The thinner and lighter cabinet decreased the delivery cost effectively.
4. customized design in cabinets, OEM provided
5.With operating temperature between -30ºC~60ºC, LED display is able to be installed in any environments and able to operate in coastal place with high temperature and high salinity.
6.With the brightness higher than 2000cd/M2, our indoor display is bale to be installed in different environments. Besides our display can change the brightness automatically upon the multi-function card. On the aspect of design, we conform to environmental protection and energy saving philosophy.
